Thông tin chi tiết sản phẩm:
|
| Chipset: | Rockchip RK3399 | Ứng dụng: | Các thiết bị đầu cuối thông minh |
|---|---|---|---|
| CPU: | Rockchip RK3399 lõi kép Cortex-A72+ CPU lõi tứ Cortex-A53 | GPU: | GPU ARM Mali-T860MP4 |
| đặt cọc: | LPDDR4 4G | Bộ nhớ trong: | EMMC 8GB/16G/32G/64G Tùy chọn (Thông mặc định 16GB) |
| Giao diện hiển thị: | LVDS/EDP | điện áp màn hình: | Hỗ trợ tùy chọn 3,3V/5V/12V |
Rockchip RK3399 4K lvds edp Resolution 1080P 4GB DDR 32GB EMMC Embedded System Board Hexa-Core WIFI ARM board
for Android Touch LCD Display Digital Signage Network Advertising Kiosk
Traditional signs like posters and banners have been around for a long time, they were the best option for business owners and advertisers to advertise & market their products and service. The static signs are simple and their initial cost are low, however it can only show one message/printing at a time. And it takes time and effort to design, print and install a new one, and the cost of updating is getting higher and higher and the biggest problem is it's a static "silent salesman", it has less eye-catching, it can't affect your customer's mood too much. Now, after years of developing, the situation has changed, DigitalFrame0 has successfully integrated the digital advertising displays with an embedded media signage player and CMS , which is able to easily use slide shows and carousels to provide a more dynamic ways and deliver right meaningful content to interact with your target audience in right location via USB or network. The integration allow our LED signage displays to be able to attract more attention from visitors, then create a more comfortable viewing experience and finally increase more business sales and brand awareness.
Model No: AD-B03-V1.5
Overview

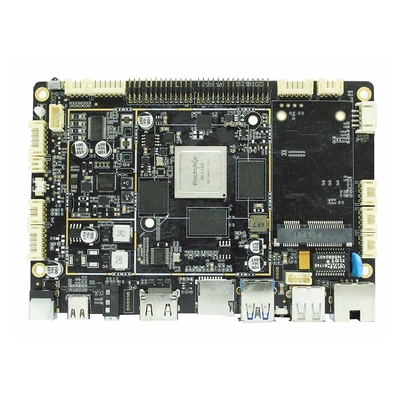

AD-B03 is using a Rockchip Hexa-core processor, based on Big. Little architecture: Dual Cortex-A72+Quad Cortex-A53, 64-bit CPU. The performance has been improved in integer, floating-point, memory, performance, etc. GPU supports Mali-T860 integrated with more bandwidth compression technology, supports multi-format video encoding and decoding, a variety of display interfaces, and achieves 4K resolution. It applies to Tablet, VR, Advertisement, All-in-One device, POS, Vehicle IVI, Thin Client, VOIP Video Conference, Security/ Surveillance/ Alert and IoT.

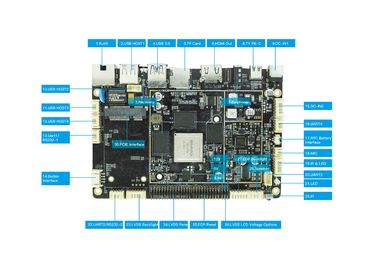

Basic hardware specifications
| CPU | Rockchip RK3399 dual core Cortex-A72+ quad core Cortex-A53 CPU |
| GPU | ARM Mali-T860MP4 GPU |
| Deposit | LPDDR4 4G |
| Built-in storage capacity | EMMC 8GB/16G/32G/64G optional (Default 16GB) |
| Display interface | LVDS interface (single, 6-bit dual, 8-bit dual). Supports a maximum resolution of 1920x1080, support 7"-84" display |
| EDP screen interface, support resolution 1920x1080 | |
| Screen voltage | Support 3.3V/5V/12V optional |
| Network | With RJ45 interface, support 10/100/1000 Ethernet |
| Support 4G PCIE interface | |
| With WIFI & BT module, support Wi-Fi 802.11a / b / g / n / ac protocol. Support BT 5.0 |
| Image rotation | Support 0 degree, 90 degrees, 180 degrees, 270 degrees manual / automatic rotation, support gravity sensing function |
| Real Time Clock | External real-time clock power supply battery |
| Interface device | Support MIPI camera x2 |
| USB HOST x 3 (support usb camera@500W usb printer, U disk, mouse, keyboard and standard USB peripherals), 1x USB3.0 | |
| 3x UART/(2 UART, 1 SPI), support external serial device (NFC module, printer, card reader, etc.) | |
| TF card, maximum support 64GB | |
| Class D amplifier: 5W*2 8 ohms, support microphone | |
| HDMI 2.0 output | |
| Audio | MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP format |
| Video | Supports H.264, MPEG2, VP6, VP8, MVC and other video formats. Online videos such as YouTube, up to 4K, HTML5 video playback, Flash 10.1 playback |
| Picture | Support JPG, BMP, PNG, GIF and other image formats to browse and support rotation / image enlargement |
| Power Adapter | Input:AC100-240V.50-60HZ, Output: DC12V/3A |
Sunchip is one of Apple's providers and Tesla.
We are professional manufacturer, designer and solution company that established in 2012, dedicated to the development of embedded motherboards, software and hardware, and finished product manufacturing, as well as digital signage retail solutions.
We focus on Rockchip chipsets solution and in-depth development, also deep customization of Android OS; Specialized on LCD Digital Signage & Android ARM Board.
1. So far, there are more than 10 years of PCBA design and production experience.
In 2022, we had the 10th Anniversary Celebration.
2. A R&D team with more than 80 people, including hardware engineers (layout boards, debugging, etc.), software engineers (driver, kernel, test and apk engineers), ID design, mechanical design engineers, support OEM/OEM
3. The whole team has about 160 people.
4. One-stop service: product definition, schematic design, PCB layout design,
prototype, production, PCBA SMT, test production, housing design, assembly, software customization, QC control, after-sales etc.
5. Passed ISO9001 factory certification
6. There are more than 3,800 square meters of office and workshop area, which is still expanding.
WELCOME TO INQUIRE US FOR ANY PRODUCTS!
SUNCHIP mainly manufactures:
1, Android industrial Embedded ARM board: RK3588, RK3566, RK3568, RK3288, RK3399,
RK3328, RKPX30, RK3188, RK3128 etc.
2, 【4K】Android player box for digital signage advertising: RK3399, RK3288, RK3328 & RK3568.
3, 【8K】Android Player Box for Industrial-Control Application: RK3588.
4, Open frame LCD display signage: 8inch, 10.1inch, 13.3inch, 15.6inch, 21.5inch etc.
5, SKD Kit: Android board + LCD panel with touch or not:
7inch, 8inch, 10.1inch, 13.3inch, 15.6inch.
6, Other types of Wall Mounted / Floor Standing / Desktop LCD digital signage.
7, Embedded touch desk: such as 32inch.
8, Face recognition temperature detection terminal machine: such as 8inch.
[You can also tell us your detailed requirements, so that we advise you a matched solution]
